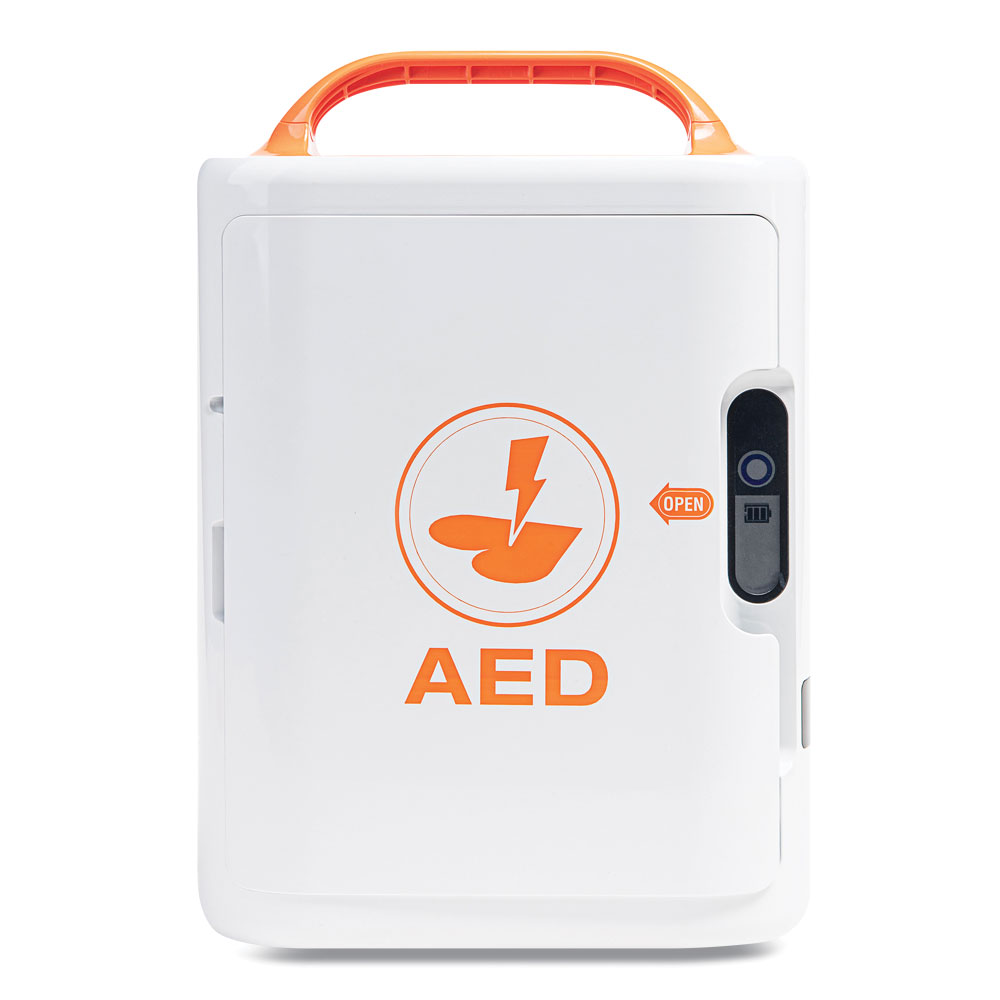

Mediana A16 HeartOn AED
The A16 AED from Mediana is available in both fully and semi-automatic options. With 3 pre-loaded languages, English, Mandarin and Korean, the ability to change from adult to child mode at the touch of a button as well as being rated to IP55, it is ideal for use in a variety of locations and environments such as workplaces, schools or for public use. The unit has also been drop tested to 0.75m on all 6 sides, proving its robustness.
Key Functions and Features
- PACE-PULSE DETECTION AND REJECTION FUNCTION: The A16 filters external pulse, like a pace-maker, and removes from the ECG reading.
- FAST SHOCK DELIVERY: Shock delivery within 10 seconds.
- MULTILINGUAL: English, Chinese (Mandarin), Korean.
- OPERATION: Fully-automatic AED – no need to press the shock button. Semi-automatic AED – flashing button indicates ‘ready for shock delivery’ users press the button to deliver shock.
- VOICE RECORDING: Enables a check to see what kind of on-site checks were done. When the device turns on the A16 records automatically.
- PADS QUALITY CHECK: Checks connectivity, expiry date or whether they have already been used and damaged.
AED Specifications
| DEFIBRILLATION ELECTRIC SHOCK | |
|---|---|
| Waveform: | Biphasic Truncated Exponential (BTE) waveform (Impedance compensation) |
| Energy: | Adult: 170 to 195J (±5%) Paediatric: 44 to 51J (±5%) |
| Operating Mode: | Semi-Auto, Fully-Auto |
| ECG | |
| Lead: | II (RA, LL) |
| Patient Impedance: | 25 to 200 ohm |
| Detection V/F: | ≥ 0.2mV |
| V/T Adult: | ≥ 150 bpm |
| INDICATION | |
| CONTROLS | |
| Standard: | Power button, shock button, patient mode switch button, select language button. |
| INDICATORS | |
| Visible: | Action icon, Status LCD (AED, battery, temperature and pads status). |
| Audible: | Audio speaker (voice prompt, CPR indication). Beep (CPR indication, power on, critically low battery, self-test fail, alarm of abnormal operation). |
| PHYSICAL | |
| Dimensions: | 286.5H × 200W × 90mmD |
| Weight: | Approx. 1.95kg (Including battery, excluding pads). |
| Ingress Protection: | IP55 |
| SELF TEST | |
| Cycle: | Every 24 hours, 1 week, 1 month. Power on self test, battery insertion self test. |
| Test Result: | Status LCD displays ‘O’ / ‘X’. |
| DATA BACKUP AND COMMUNICATION | |
| Standard: | Internal memory, SD card slot, IR communication port. |
Accessory Specifications
| PADS | |
|---|---|
| ADULT/PAEDIATRIC | |
| Shelf Life: | 36 months from manufacture date (ref 2902) |
| Electrodes: | Disposable pads |
| Placement: | Adult: Anterior–lateral Paediatric: Anterior–posterior |
| Minimum active gel area: | 80 cm² ±5% |
| Cable Length: | Approx. 1.8 m |
| ENVIRONMENTAL CONDITIONS — PADS | |
| Temperature: | Operation: 0 to 43 °C (32 to 109.4 °F) Storage: 0 to 43 °C (32 to 109.4 °F) |
| Relative Humidity: | 5 to 95% RH (non-condensing) |
| BATTERY | |
| Type: | LiMnO₂, disposable, long-life primary cell |
| Voltage/Capacity: | 15 V, 3000 mAh |
| Shelf Life: | 2 years from date of manufacture (in original packaging) |
| Standby Life: | 5 years from date of manufacture (inserted in the AED) |
| Discharge: | A minimum of 200 shocks (excluding the CPR period between defibrillation therapy) or more than 6 hours of operating time at 20 °C |
| ENVIRONMENTAL CONDITIONS — BATTERY | |
| Temperature: | Operation: 0 to 43 °C (32 to 109.4 °F) Storage: 10 to 25 °C (50 to 77 °F) |
| Relative Humidity: | 5 to 95% RH (non-condensing) |
| The pad configuration must always match device configuration. | |
| Information correct at time of going to press. Subject to change without notice. | |
Q&A's
Q: Can this be used for both adults and children?
A: Yes, and the mode can be changed using the adult to paediatric mode button on the main interface.
Q: What languages are the unit’s voice prompts in?
A: There are 3 languages loaded onto the A16, these are English, Chinese (Mandarin), Korean.
Q: What temperature can the unit be stored at?
A: Between 0° and 43° Celsius.
Q: What IP is this rated to?
A: The A16 unit is rated to IP55.
Q: How many years of warranty does the unit have?
A: The A16 has 5 years of warranty.
Q: What is the difference between the two types of pads?
A: Code 2902 are the normal adult/paediatric pads. Code 2903 includes a “pads quality” function, which checks whether there is a problem with the pads, for example, expired pads, damaged pads or the recommended replacement of the pads.
